Deploying in your private IP address space

As an alternative to deploying the Centrex Proxy Server® into the global IP address space, you can also deploy the server within your own private IP address space and lose no functionality or connectivity capabilities whatsoever.

When you deploy the server in your private network, you enhance the security of your Centrex Proxy Server® by "hiding" it behind your outermost firewall or NAT router. The main advantage is that your server will be less visible to the internet side of the network.

However, when you deploy your VOIP domain within your private network, you must make sure that your outermost NAT router will forward all UDP SIP and RTP traffic to the appropriate destination machines within your network.

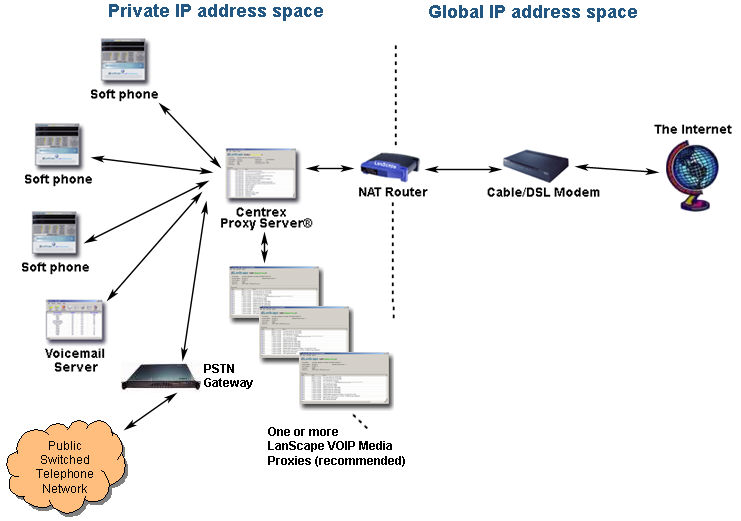

The figure below shows a typical private network deployment:

In the above figure, the Centrex Proxy Server® is located inside of the private IP network. The boundary being the NAT router. The left side of the NAT router represents the private IP network and the right of the NAT router represents the global IP network. The figure above shows an internet connection using a broadband cable or DSL mode. In reality, your connection to the internet can be any technology.

Also of interest is the ability to deploy more than one Centrex Proxy Server® in your domain. This can give you the ability to "load share" your session capability for your domain if you deploy for a huge number of users or require redundancy. When more than one Centrex Proxy Server® is deployed, each server will be configured to access the same registration database.

Proxying Media:

The deployment can also take full advantage of LanScape's optional VOIP Media Proxy Server® software to enhance the VOIP deployment. Due to the hostile nature of the current IP4 network regarding peer to peer VOIP communications, media proxying is recommended for all VOIP deployments. It allows you to maintain the utmost in private network security while allowing you to overcome the myriad of issues you must face when deploying VOIP networks. By deploying one or more LanScape VOIP Media Proxies in a load sharing configuration, you do not need additional costly network elements such as session border controllers or boundary controllers. These additional devices are no longer required which will save you thousands of dollars during the deployment of your VOIP domain. LanScape Centrex Proxy Servers can automatically load share with two or more VOIP Media Proxy servers. Also, any combination of Centrex Proxy Servers and VOIP Media Proxy Servers can be configured for full media load sharing. Even if the Centrex Proxy Servers are managing different VOIP domains.
