Deploying in the global IP address space

The easiest way to deploy the Centrex Proxy Server® is to locate the server on a host machine that has a global IP address. When you deploy the server in the global IP address space, you ensure that any other machine in your private or global IP network (the internet) can access your VOIP domain.

Deploying to the global IP address space also simplifies network administration seeing that no special firewall or router setups have to be configured. Note also that is acceptable to locate your Centrex Proxy Server® in your DMZ if you have one.

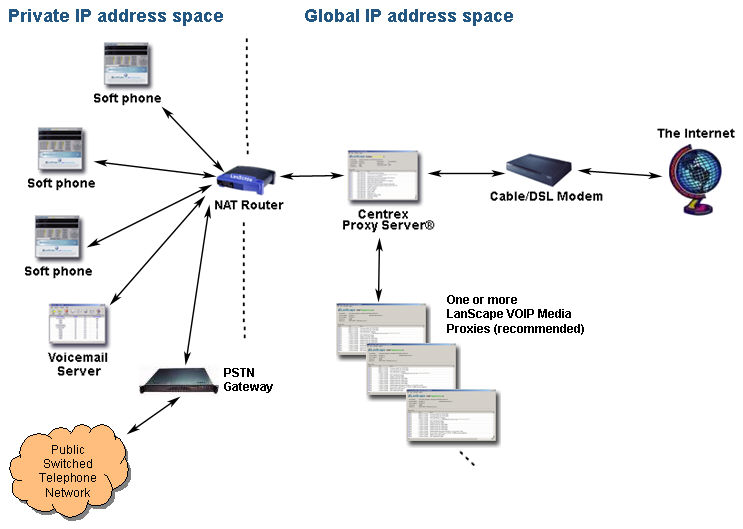

The figure below shows a typical global IP address deployment:

In the above figure, the Centrex Proxy Server® is located outside of the private IP network. The boundary being the NAT router. The left side of the NAT router represents the private IP network and the right of the NAT router represents the global IP network. The figure above shows an internet connection using a broadband cable or DSL mode. In reality, your connection to the internet can be any technology.

Because the Centrex Proxy Server® is accessible globally, any soft phone or other VOIP device in the private network can communicate with the server. Similarly, any other VOIP domain, single soft phone or other SIP VOIP device can access the Centrex Proxy Server® thus making calling into your VOIP domain possible.

Also of interest is the ability to deploy more than one Centrex Proxy Server® in your domain. This can give you the ability to "load share" your session capability for your domain if you deploy for a huge number of users or require redundancy. When more than one Centrex Proxy Server® is deployed, each server will be configured to access the same registration database.

Proxying Media:

The deployment can also take full advantage of LanScape's optional VOIP Media Proxy Server® software to enhance the VOIP deployment. Due to the hostile nature of the current IP4 network regarding peer to peer VOIP communications, media proxying is recommended for all VOIP deployments. It allows you to maintain the utmost in private network security while allowing you to overcome the myriad of issues you must face when deploying VOIP networks. By deploying one or more LanScape VOIP Media Proxies in a load sharing configuration, you do not need additional costly network elements such as session border controllers or boundary controllers. These additional devices are no longer required which will save you thousands of dollars during the deployment of your VOIP domain. LanScape Centrex Proxy Servers will automatically load share with two or more VOIP Media Proxy servers. Also, any combination of Centrex Proxy Servers and VOIP Media Proxy Servers can be configured for full media load sharing. Even if the Centrex Proxy Servers are managing different VOIP domains.
