Restoring the Proxy Configuration

The LanScape VOIP Media Proxy® server supports the ability to restore primary proxy configuration information from backup file images. For complete information on proxy setting backup/restore, please see the help topic "Backing Up the Proxy Configuration".

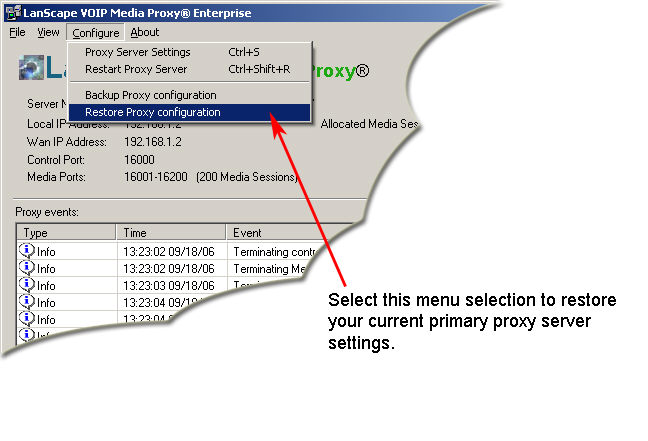

The following main menu selection can be used to perform a media proxy server configuration restore:

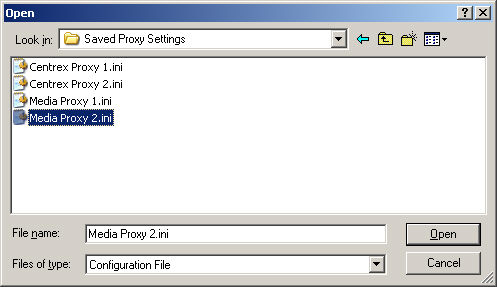

Once you select the menu selection above, the following dialog will be displayed that will allow you to specify a source file name:

Select an existing image file. To restore your proxy settings, press the Open button.


Once you press the Open button, the media proxy server settings will be restored from the selected file image and the media proxy server will automatically restart.
